工作流和智能体

本指南回顾了智能体系统的常见模式。在描述这些系统时,区分"工作流"和"智能体"是很有用的。Anthropic 的 Building Effective Agents 博客文章很好地解释了这种区别:

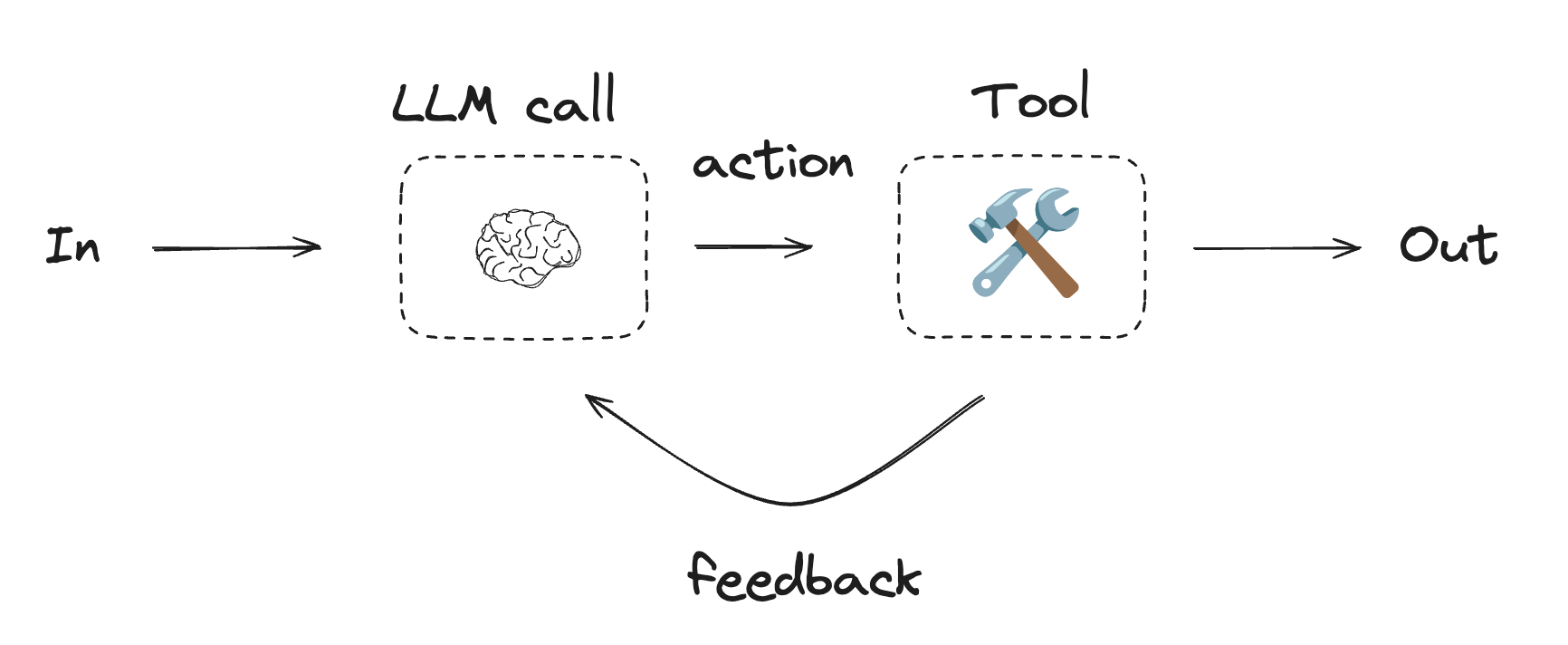

工作流是通过预定义代码路径编排 LLM 和工具的系统。 另一方面,智能体是 LLM 动态指导自己的过程和工具使用的系统,保持对如何完成任务的控制。

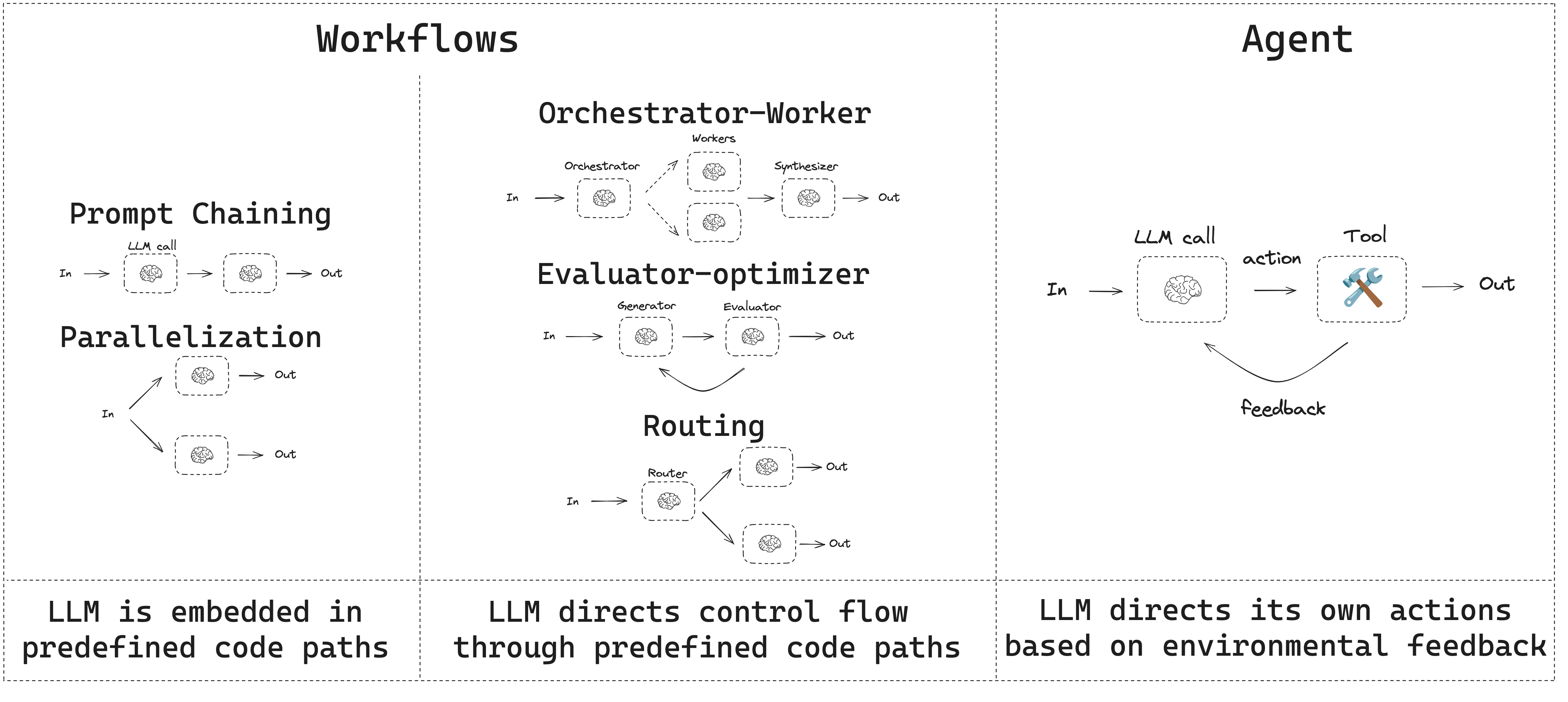

以下是可视化这些差异的简单方法:

在构建智能体和工作流时,LangGraph 提供了许多好处,包括持久化、流式处理以及对调试和部署的支持。

设置

Python

你可以使用任何聊天模型,只要它支持结构化输出和工具调用。下面展示了安装包、设置 API 密钥以及测试 Anthropic 的结构化输出/工具调用的过程。

安装依赖项

pip install langchain_core langchain-anthropic langgraph

初始化一个 LLM

import os
import getpass

from langchain_anthropic import ChatAnthropic

def _set_env(var: str):
    if not os.environ.get(var):
        os.environ[var] = getpass.getpass(f"{var}: ")


_set_env("ANTHROPIC_API_KEY")

llm = ChatAnthropic(model="claude-3-5-sonnet-latest")

JavaScript

你可以使用任何聊天模型,只要它支持结构化输出和工具调用。下面展示了安装包、设置 API 密钥以及测试 Anthropic 的结构化输出/工具调用的过程。

安装依赖项

npm install @langchain/core @langchain/anthropic @langchain/langgraph

初始化一个 LLM

import { ChatAnthropic } from "@langchain/anthropic";

process.env.ANTHROPIC_API_KEY = "YOUR_API_KEY";

const llm = new ChatAnthropic({ model: "claude-3-5-sonnet-latest" });

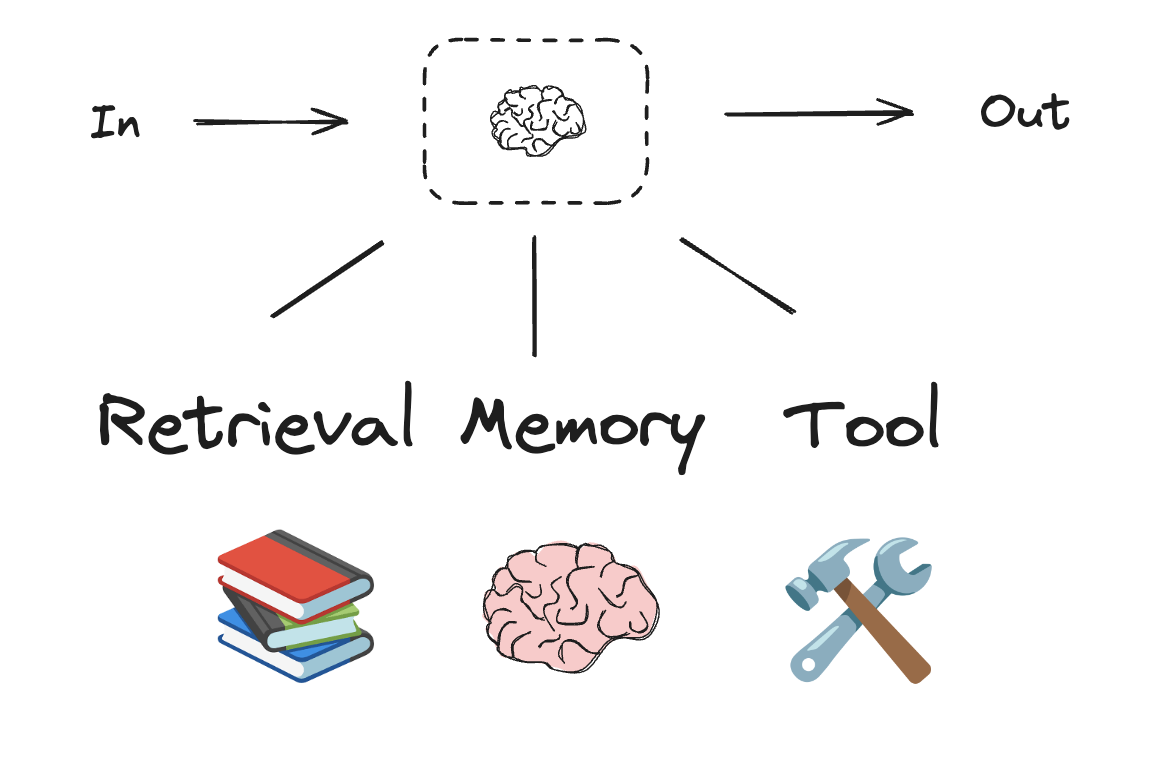

构建块:增强的 LLM

LLM 具有支持构建工作流和智能体的增强功能。这些功能包括结构化输出和工具调用,如 Anthropic 关于 Building Effective Agents 的博客中的这张图所示:

Python

# 结构化输出的 Schema
from pydantic import BaseModel, Field

class SearchQuery(BaseModel):
    search_query: str = Field(None, description="Query that is optimized web search.")
    justification: str = Field(
        None, description="Why this query is relevant to the user's request."
    )


# 使用结构化输出的 schema 增强 LLM
structured_llm = llm.with_structured_output(SearchQuery)

# 调用增强的 LLM
output = structured_llm.invoke("How does Calcium CT score relate to high cholesterol?")

# 定义工具
def multiply(a: int, b: int) -> int:
    return a * b

# 使用工具增强 LLM
llm_with_tools = llm.bind_tools([multiply])

# 使用触发工具调用的输入调用 LLM
msg = llm_with_tools.invoke("What is 2 times 3?")

# 获取工具调用
msg.tool_calls

JavaScript

import { z } from "zod";
import { tool } from "@langchain/core/tools";

// 结构化输出的 Schema
const SearchQuery = z.object({
  search_query: z.string().describe("Query that is optimized web search."),
  justification: z
    .string()
    .describe("Why this query is relevant to the user's request."),
});

// 使用结构化输出的 schema 增强 LLM
const structuredLlm = llm.withStructuredOutput(SearchQuery);

// 调用增强的 LLM
const output = await structuredLlm.invoke(
  "How does Calcium CT score relate to high cholesterol?"
);

// 定义工具
const multiply = tool(
  async ({ a, b }: { a: number; b: number }) => {
    return a * b;
  },
  {
    name: "multiply",
    description: "Multiply two numbers",
    schema: z.object({
      a: z.number(),
      b: z.number(),
    }),
  }
);

// 使用工具增强 LLM
const llmWithTools = llm.bindTools([multiply]);

// 使用触发工具调用的输入调用 LLM
const msg = await llmWithTools.invoke("What is 2 times 3?");

// 获取工具调用
console.log(msg.tool_calls);

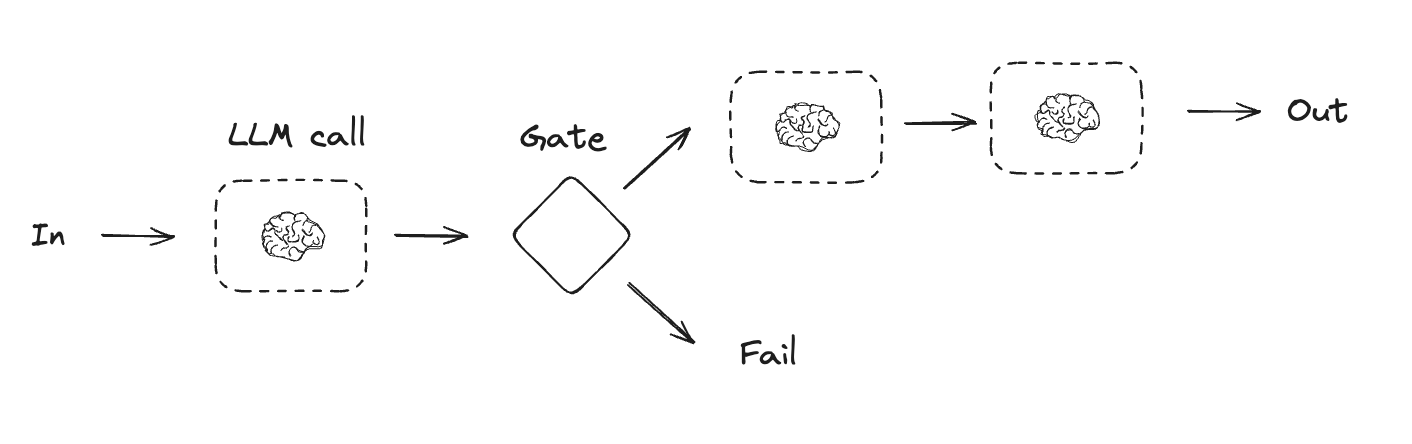

提示词链式调用

在提示词链式调用中,每个 LLM 调用都处理前一个调用的输出。

如 Anthropic 关于 Building Effective Agents 的博客中所述:

提示词链式调用将任务分解为一系列步骤,其中每个 LLM 调用处理前一个调用的输出。你可以在任何中间步骤添加程序性检查(见下图中的"gate"),以确保过程仍在正轨上。

何时使用此工作流:此工作流非常适合任务可以轻松且清晰地分解为固定子任务的情况。主要目标是通过使每个 LLM 调用成为更简单的任务来权衡延迟以获得更高的准确性。

Graph APIFunctional API

Python

from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from IPython.display import Image, display


# Graph state
class State(TypedDict):
    topic: str
    joke: str
    improved_joke: str
    final_joke: str


# Nodes
def generate_joke(state: State):
    """First LLM call to generate initial joke"""

    msg = llm.invoke(f"Write a short joke about {state['topic']}")
    return {"joke": msg.content}


def check_punchline(state: State):
    """Gate function to check if the joke has a punchline"""

    # Simple check - does the joke contain "?" or "!"
    if "?" in state["joke"] or "!" in state["joke"]:
        return "Pass"
    return "Fail"


def improve_joke(state: State):
    """Second LLM call to improve the joke"""

    msg = llm.invoke(f"Make this joke funnier by adding wordplay: {state['joke']}")
    return {"improved_joke": msg.content}


def polish_joke(state: State):
    """Third LLM call for final polish"""

    msg = llm.invoke(f"Add a surprising twist to this joke: {state['improved_joke']}")
    return {"final_joke": msg.content}


# Build workflow
workflow = StateGraph(State)

# Add nodes
workflow.add_node("generate_joke", generate_joke)
workflow.add_node("improve_joke", improve_joke)
workflow.add_node("polish_joke", polish_joke)

# Add edges to connect nodes
workflow.add_edge(START, "generate_joke")
workflow.add_conditional_edges(
    "generate_joke", check_punchline, {"Fail": "improve_joke", "Pass": END}
)
workflow.add_edge("improve_joke", "polish_joke")
workflow.add_edge("polish_joke", END)

# Compile
chain = workflow.compile()

# Show workflow
display(Image(chain.get_graph().draw_mermaid_png()))

# Invoke
state = chain.invoke({"topic": "cats"})
print("Initial joke:")
print(state["joke"])
print("\n--- --- ---\n")
if "improved_joke" in state:
    print("Improved joke:")
    print(state["improved_joke"])
    print("\n--- --- ---\n")

    print("Final joke:")
    print(state["final_joke"])
else:
    print("Joke failed quality gate - no punchline detected!")

LangSmith Trace

https://smith.langchain.com/public/a0281fca-3a71-46de-beee-791468607b75/r

资源:

LangChain Academy

请参阅我们关于提示词链式调用的课程此处。

JavaScript

import { StateGraph, START, END } from "@langchain/langgraph";
import { z } from "zod";

// Graph state
const State = z.object({
  topic: z.string(),
  joke: z.string().optional(),
  improved_joke: z.string().optional(),
  final_joke: z.string().optional(),
});

// Nodes
const generateJoke = async (state: z.infer<typeof State>) => {
  // First LLM call to generate initial joke
  const msg = await llm.invoke(`Write a short joke about ${state.topic}`);
  return { joke: msg.content };
};

const checkPunchline = (state: z.infer<typeof State>) => {
  // Gate function to check if the joke has a punchline
  // Simple check - does the joke contain "?" or "!"
  if (state.joke && (state.joke.includes("?") || state.joke.includes("!"))) {
    return "Pass";
  }
  return "Fail";
};

const improveJoke = async (state: z.infer<typeof State>) => {
  // Second LLM call to improve the joke
  const msg = await llm.invoke(`Make this joke funnier by adding wordplay: ${state.joke}`);
  return { improved_joke: msg.content };
};

const polishJoke = async (state: z.infer<typeof State>) => {
  // Third LLM call for final polish
  const msg = await llm.invoke(`Add a surprising twist to this joke: ${state.improved_joke}`);
  return { final_joke: msg.content };
};

// Build workflow
const workflow = new StateGraph(State)
  .addNode("generate_joke", generateJoke)
  .addNode("improve_joke", improveJoke)
  .addNode("polish_joke", polishJoke)
  .addEdge(START, "generate_joke")
  .addConditionalEdges(
    "generate_joke",
    checkPunchline,
    { "Fail": "improve_joke", "Pass": END }
  )
  .addEdge("improve_joke", "polish_joke")
  .addEdge("polish_joke", END);

// Compile
const chain = workflow.compile();

// Show workflow
import * as fs from "node:fs/promises";
const drawableGraph = await chain.getGraphAsync();
const image = await drawableGraph.drawMermaidPng();
const imageBuffer = new Uint8Array(await image.arrayBuffer());
await fs.writeFile("workflow.png", imageBuffer);

// Invoke
const state = await chain.invoke({ topic: "cats" });
console.log("Initial joke:");
console.log(state.joke);
console.log("\n--- --- ---\n");
if (state.improved_joke) {
  console.log("Improved joke:");
  console.log(state.improved_joke);
  console.log("\n--- --- ---\n");

  console.log("Final joke:");
  console.log(state.final_joke);
} else {
  console.log("Joke failed quality gate - no punchline detected!");
}

Python

from langgraph.func import entrypoint, task


# Tasks
@task
def generate_joke(topic: str):
    """First LLM call to generate initial joke"""
    msg = llm.invoke(f"Write a short joke about {topic}")
    return msg.content


def check_punchline(joke: str):
    """Gate function to check if the joke has a punchline"""
    # Simple check - does the joke contain "?" or "!"
    if "?" in joke or "!" in joke:
        return "Fail"

    return "Pass"


@task
def improve_joke(joke: str):
    """Second LLM call to improve the joke"""
    msg = llm.invoke(f"Make this joke funnier by adding wordplay: {joke}")
    return msg.content


@task
def polish_joke(joke: str):
    """Third LLM call for final polish"""
    msg = llm.invoke(f"Add a surprising twist to this joke: {joke}")
    return msg.content


@entrypoint()
def prompt_chaining_workflow(topic: str):
    original_joke = generate_joke(topic).result()
    if check_punchline(original_joke) == "Pass":
        return original_joke

    improved_joke = improve_joke(original_joke).result()
    return polish_joke(improved_joke).result()

# Invoke
for step in prompt_chaining_workflow.stream("cats", stream_mode="updates"):
    print(step)
    print("\n")

LangSmith Trace

https://smith.langchain.com/public/332fa4fc-b6ca-416e-baa3-161625e69163/r

JavaScript

import { entrypoint, task } from "@langchain/langgraph";

// Tasks
const generateJoke = task("generate_joke", async (topic: string) => {
  // First LLM call to generate initial joke
  const msg = await llm.invoke(`Write a short joke about ${topic}`);
  return msg.content;
});

const checkPunchline = (joke: string) => {
  // Gate function to check if the joke has a punchline
  // Simple check - does the joke contain "?" or "!"
  if (joke.includes("?") || joke.includes("!")) {
    return "Pass";
  }
  return "Fail";
};

const improveJoke = task("improve_joke", async (joke: string) => {
  // Second LLM call to improve the joke
  const msg = await llm.invoke(`Make this joke funnier by adding wordplay: ${joke}`);
  return msg.content;
});

const polishJoke = task("polish_joke", async (joke: string) => {
  // Third LLM call for final polish
  const msg = await llm.invoke(`Add a surprising twist to this joke: ${joke}`);
  return msg.content;
});

const promptChainingWorkflow = entrypoint("promptChainingWorkflow", async (topic: string) => {
  const originalJoke = await generateJoke(topic);
  if (checkPunchline(originalJoke) === "Pass") {
    return originalJoke;
  }

  const improvedJoke = await improveJoke(originalJoke);
  return await polishJoke(improvedJoke);
});

// Invoke
const stream = await promptChainingWorkflow.stream("cats", { streamMode: "updates" });
for await (const step of stream) {
  console.log(step);
  console.log("\n");
}

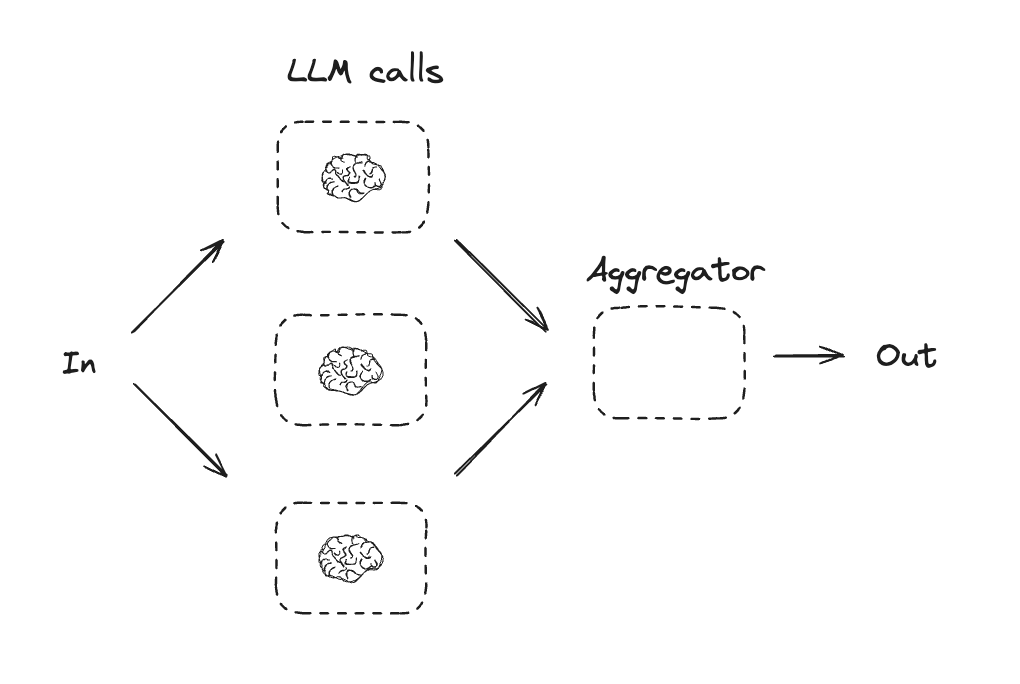

并行化

使用并行化时,LLM 同时处理一个任务:

LLM 有时可以同时处理一个任务并以编程方式聚合它们的输出。这个工作流,即并行化,表现为两个关键变体:分段:将任务分解为并行运行的独立子任务。投票:多次运行相同的任务以获得多样化的输出。

何时使用此工作流:当分割的子任务可以并行化以提高速度时,或者当需要多种视角或尝试以获得更高置信度结果时,并行化是有效的。对于具有多种考虑因素的复杂任务,当每个考虑因素由单独的 LLM 调用处理时,LLM 通常表现更好,允许对每个特定方面的重点关注。

Graph APIFunctional API

Python

# Graph state
class State(TypedDict):
    topic: str
    joke: str
    story: str
    poem: str
    combined_output: str


# Nodes
def call_llm_1(state: State):
    """First LLM call to generate initial joke"""

    msg = llm.invoke(f"Write a joke about {state['topic']}")
    return {"joke": msg.content}


def call_llm_2(state: State):
    """Second LLM call to generate story"""

    msg = llm.invoke(f"Write a story about {state['topic']}")
    return {"story": msg.content}


def call_llm_3(state: State):
    """Third LLM call to generate poem"""

    msg = llm.invoke(f"Write a poem about {state['topic']}")
    return {"poem": msg.content}


def aggregator(state: State):
    """Combine the joke and story into a single output"""

    combined = f"Here's a story, joke, and poem about {state['topic']}!\n\n"
    combined += f"STORY:\n{state['story']}\n\n"
    combined += f"JOKE:\n{state['joke']}\n\n"
    combined += f"POEM:\n{state['poem']}"
    return {"combined_output": combined}


# Build workflow
parallel_builder = StateGraph(State)

# Add nodes
parallel_builder.add_node("call_llm_1", call_llm_1)
parallel_builder.add_node("call_llm_2", call_llm_2)
parallel_builder.add_node("call_llm_3", call_llm_3)
parallel_builder.add_node("aggregator", aggregator)

# Add edges to connect nodes
parallel_builder.add_edge(START, "call_llm_1")
parallel_builder.add_edge(START, "call_llm_2")
parallel_builder.add_edge(START, "call_llm_3")
parallel_builder.add_edge("call_llm_1", "aggregator")
parallel_builder.add_edge("call_llm_2", "aggregator")
parallel_builder.add_edge("call_llm_3", "aggregator")
parallel_builder.add_edge("aggregator", END)
parallel_workflow = parallel_builder.compile()

# Show workflow
display(Image(parallel_workflow.get_graph().draw_mermaid_png()))

# Invoke
state = parallel_workflow.invoke({"topic": "cats"})
print(state["combined_output"])

LangSmith Trace

https://smith.langchain.com/public/3be2e53c-ca94-40dd-934f-82ff87fac277/r

资源:

文档

请参阅我们关于并行化的文档此处。

LangChain Academy

请参阅我们关于并行化的课程此处。

JavaScript

// Graph state
const State = z.object({
  topic: z.string(),
  joke: z.string().optional(),
  story: z.string().optional(),
  poem: z.string().optional(),
  combined_output: z.string().optional(),
});

// Nodes
const callLlm1 = async (state: z.infer<typeof State>) => {
  // First LLM call to generate initial joke
  const msg = await llm.invoke(`Write a joke about ${state.topic}`);
  return { joke: msg.content };
};

const callLlm2 = async (state: z.infer<typeof State>) => {
  // Second LLM call to generate story
  const msg = await llm.invoke(`Write a story about ${state.topic}`);
  return { story: msg.content };
};

const callLlm3 = async (state: z.infer<typeof State>) => {
  // Third LLM call to generate poem
  const msg = await llm.invoke(`Write a poem about ${state.topic}`);
  return { poem: msg.content };
};

const aggregator = (state: z.infer<typeof State>) => {
  // Combine the joke and story into a single output
  let combined = `Here's a story, joke, and poem about ${state.topic}!\n\n`;
  combined += `STORY:\n${state.story}\n\n`;
  combined += `JOKE:\n${state.joke}\n\n`;
  combined += `POEM:\n${state.poem}`;
  return { combined_output: combined };
};

// Build workflow
const parallelBuilder = new StateGraph(State)
  .addNode("call_llm_1", callLlm1)
  .addNode("call_llm_2", callLlm2)
  .addNode("call_llm_3", callLlm3)
  .addNode("aggregator", aggregator)
  .addEdge(START, "call_llm_1")
  .addEdge(START, "call_llm_2")
  .addEdge(START, "call_llm_3")
  .addEdge("call_llm_1", "aggregator")
  .addEdge("call_llm_2", "aggregator")
  .addEdge("call_llm_3", "aggregator")
  .addEdge("aggregator", END);

const parallelWorkflow = parallelBuilder.compile();

// Invoke
const state = await parallelWorkflow.invoke({ topic: "cats" });
console.log(state.combined_output);

Python

@task
def call_llm_1(topic: str):
    """First LLM call to generate initial joke"""
    msg = llm.invoke(f"Write a joke about {topic}")
    return msg.content


@task
def call_llm_2(topic: str):
    """Second LLM call to generate story"""
    msg = llm.invoke(f"Write a story about {topic}")
    return msg.content


@task
def call_llm_3(topic):
    """Third LLM call to generate poem"""
    msg = llm.invoke(f"Write a poem about {topic}")
    return msg.content


@task
def aggregator(topic, joke, story, poem):
    """Combine the joke and story into a single output"""

    combined = f"Here's a story, joke, and poem about {topic}!\n\n"
    combined += f"STORY:\n{story}\n\n"
    combined += f"JOKE:\n{joke}\n\n"
    combined += f"POEM:\n{poem}"
    return combined


# Build workflow
@entrypoint()
def parallel_workflow(topic: str):
    joke_fut = call_llm_1(topic)
    story_fut = call_llm_2(topic)
    poem_fut = call_llm_3(topic)
    return aggregator(
        topic, joke_fut.result(), story_fut.result(), poem_fut.result()
    ).result()

# Invoke
for step in parallel_workflow.stream("cats", stream_mode="updates"):
    print(step)
    print("\n")

LangSmith Trace

https://smith.langchain.com/public/623d033f-e814-41e9-80b1-75e6abb67801/r

JavaScript

const callLlm1 = task("call_llm_1", async (topic: string) => {
  // First LLM call to generate initial joke
  const msg = await llm.invoke(`Write a joke about ${topic}`);
  return msg.content;
});

const callLlm2 = task("call_llm_2", async (topic: string) => {
  // Second LLM call to generate story
  const msg = await llm.invoke(`Write a story about ${topic}`);
  return msg.content;
});

const callLlm3 = task("call_llm_3", async (topic: string) => {
  // Third LLM call to generate poem
  const msg = await llm.invoke(`Write a poem about ${topic}`);
  return msg.content;
});

const aggregator = task("aggregator", (topic: string, joke: string, story: string, poem: string) => {
  // Combine the joke and story into a single output
  let combined = `Here's a story, joke, and poem about ${topic}!\n\n`;
  combined += `STORY:\n${story}\n\n`;
  combined += `JOKE:\n${joke}\n\n`;
  combined += `POEM:\n${poem}`;
  return combined;
});

// Build workflow
const parallelWorkflow = entrypoint("parallelWorkflow", async (topic: string) => {
  const jokeFut = callLlm1(topic);
  const storyFut = callLlm2(topic);
  const poemFut = callLlm3(topic);

  return await aggregator(
    topic,
    await jokeFut,
    await storyFut,
    await poemFut
  );
});

// Invoke
const stream = await parallelWorkflow.stream("cats", { streamMode: "updates" });
for await (const step of stream) {
  console.log(step);
  console.log("\n");
}

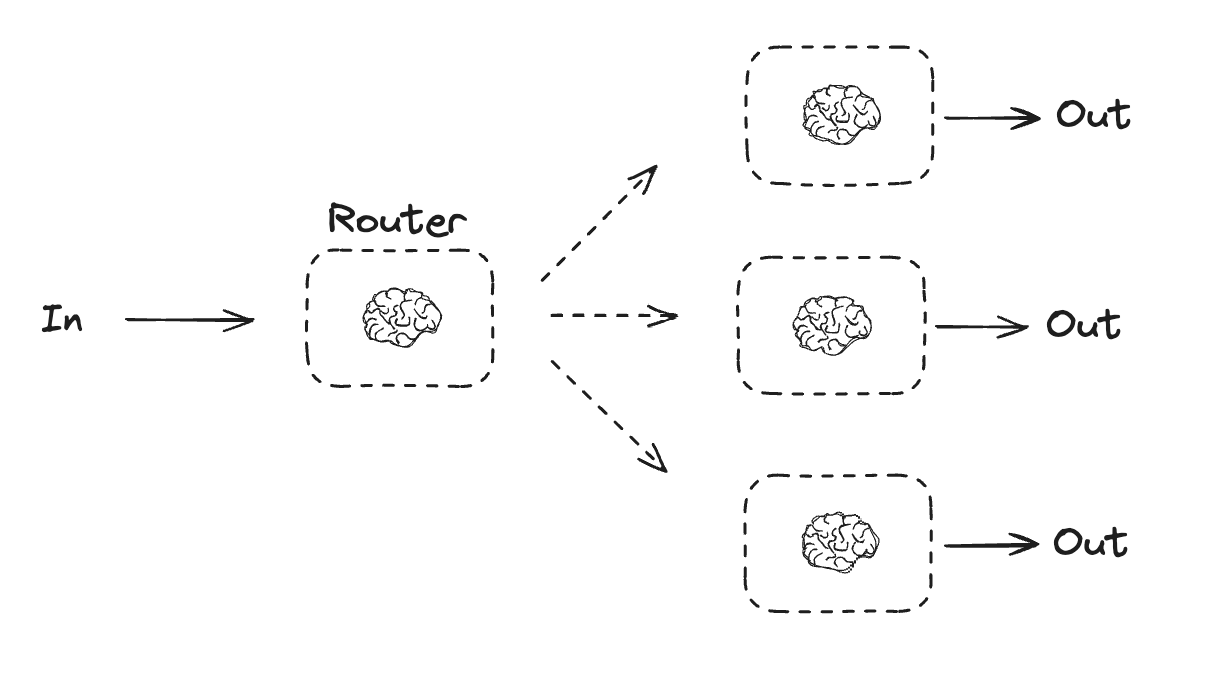

路由

路由对输入进行分类并将其定向到后续任务。如 Anthropic 关于 Building Effective Agents 的博客中所述:

路由对输入进行分类并将其定向到专门的后续任务。此工作流允许关注点分离,并构建更专业化的提示词。如果没有此工作流,针对一种输入的优化可能会损害其他输入的性能。

何时使用此工作流:路由适用于具有不同类别的复杂任务,这些类别最好分别处理,并且分类可以由 LLM 或更传统的分类模型/算法准确处理。

Graph APIFunctional API

Python

from typing_extensions import Literal
from langchain_core.messages import HumanMessage, SystemMessage


# Schema for structured output to use as routing logic
class Route(BaseModel):
    step: Literal["poem", "story", "joke"] = Field(
        None, description="The next step in the routing process"
    )


# Augment the LLM with schema for structured output
router = llm.with_structured_output(Route)


# State
class State(TypedDict):
    input: str
    decision: str
    output: str


# Nodes
def llm_call_1(state: State):
    """Write a story"""

    result = llm.invoke(state["input"])
    return {"output": result.content}


def llm_call_2(state: State):
    """Write a joke"""

    result = llm.invoke(state["input"])
    return {"output": result.content}


def llm_call_3(state: State):
    """Write a poem"""

    result = llm.invoke(state["input"])
    return {"output": result.content}


def llm_call_router(state: State):
    """Route the input to the appropriate node"""

    # Run the augmented LLM with structured output to serve as routing logic
    decision = router.invoke(
        [
            SystemMessage(
                content="Route the input to story, joke, or poem based on the user's request."
            ),
            HumanMessage(content=state["input"]),
        ]
    )

    return {"decision": decision.step}


# Conditional edge function to route to the appropriate node
def route_decision(state: State):
    # Return the node name you want to visit next
    if state["decision"] == "story":
        return "llm_call_1"
    elif state["decision"] == "joke":
        return "llm_call_2"
    elif state["decision"] == "poem":
        return "llm_call_3"


# Build workflow
router_builder = StateGraph(State)

# Add nodes
router_builder.add_node("llm_call_1", llm_call_1)
router_builder.add_node("llm_call_2", llm_call_2)
router_builder.add_node("llm_call_3", llm_call_3)
router_builder.add_node("llm_call_router", llm_call_router)

# Add edges to connect nodes
router_builder.add_edge(START, "llm_call_router")
router_builder.add_conditional_edges(
    "llm_call_router",
    route_decision,
    {  # Name returned by route_decision : Name of next node to visit
        "llm_call_1": "llm_call_1",
        "llm_call_2": "llm_call_2",
        "llm_call_3": "llm_call_3",
    },
)
router_builder.add_edge("llm_call_1", END)
router_builder.add_edge("llm_call_2", END)
router_builder.add_edge("llm_call_3", END)

# Compile workflow
router_workflow = router_builder.compile()

# Show the workflow
display(Image(router_workflow.get_graph().draw_mermaid_png()))

# Invoke
state = router_workflow.invoke({"input": "Write me a joke about cats"})
print(state["output"])

LangSmith Trace

https://smith.langchain.com/public/c4580b74-fe91-47e4-96fe-7fac598d509c/r

资源:

LangChain Academy

请参阅我们关于路由的课程此处。

示例

此处是路由问题的 RAG 工作流。请参阅我们的视频此处。

JavaScript

import { SystemMessage, HumanMessage } from "@langchain/core/messages";

// Schema for structured output to use as routing logic
const Route = z.object({
  step: z.enum(["poem", "story", "joke"]).describe("The next step in the routing process"),
});

// Augment the LLM with schema for structured output
const router = llm.withStructuredOutput(Route);

// State
const State = z.object({
  input: z.string(),
  decision: z.string().optional(),
  output: z.string().optional(),
});

// Nodes
const llmCall1 = async (state: z.infer<typeof State>) => {
  // Write a story
  const result = await llm.invoke(state.input);
  return { output: result.content };
};

const llmCall2 = async (state: z.infer<typeof State>) => {
  // Write a joke
  const result = await llm.invoke(state.input);
  return { output: result.content };
};

const llmCall3 = async (state: z.infer<typeof State>) => {
  // Write a poem
  const result = await llm.invoke(state.input);
  return { output: result.content };
};

const llmCallRouter = async (state: z.infer<typeof State>) => {
  // Route the input to the appropriate node
  const decision = await router.invoke([
    new SystemMessage("Route the input to story, joke, or poem based on the user's request."),
    new HumanMessage(state.input),
  ]);

  return { decision: decision.step };
};

// Conditional edge function to route to the appropriate node
const routeDecision = (state: z.infer<typeof State>) => {
  // Return the node name you want to visit next
  if (state.decision === "story") {
    return "llm_call_1";
  } else if (state.decision === "joke") {
    return "llm_call_2";
  } else if (state.decision === "poem") {
    return "llm_call_3";
  }
};

// Build workflow
const routerBuilder = new StateGraph(State)
  .addNode("llm_call_1", llmCall1)
  .addNode("llm_call_2", llmCall2)
  .addNode("llm_call_3", llmCall3)
  .addNode("llm_call_router", llmCallRouter)
  .addEdge(START, "llm_call_router")
  .addConditionalEdges(
    "llm_call_router",
    routeDecision,
    {
      "llm_call_1": "llm_call_1",
      "llm_call_2": "llm_call_2",
      "llm_call_3": "llm_call_3",
    }
  )
  .addEdge("llm_call_1", END)
  .addEdge("llm_call_2", END)
  .addEdge("llm_call_3", END);

const routerWorkflow = routerBuilder.compile();

// Invoke
const state = await routerWorkflow.invoke({ input: "Write me a joke about cats" });
console.log(state.output);

Python

from typing_extensions import Literal
from pydantic import BaseModel
from langchain_core.messages import HumanMessage, SystemMessage


# Schema for structured output to use as routing logic
class Route(BaseModel):
    step: Literal["poem", "story", "joke"] = Field(
        None, description="The next step in the routing process"
    )


# Augment the LLM with schema for structured output
router = llm.with_structured_output(Route)


@task
def llm_call_1(input_: str):
    """Write a story"""
    result = llm.invoke(input_)
    return result.content


@task
def llm_call_2(input_: str):
    """Write a joke"""
    result = llm.invoke(input_)
    return result.content


@task
def llm_call_3(input_: str):
    """Write a poem"""
    result = llm.invoke(input_)
    return result.content


def llm_call_router(input_: str):
    """Route the input to the appropriate node"""
    # Run the augmented LLM with structured output to serve as routing logic
    decision = router.invoke(
        [
            SystemMessage(
                content="Route the input to story, joke, or poem based on the user's request."
            ),
            HumanMessage(content=input_),
        ]
    )
    return decision.step


# Create workflow
@entrypoint()
def router_workflow(input_: str):
    next_step = llm_call_router(input_)
    if next_step == "story":
        llm_call = llm_call_1
    elif next_step == "joke":
        llm_call = llm_call_2
    elif next_step == "poem":
        llm_call = llm_call_3

    return llm_call(input_).result()

# Invoke
for step in router_workflow.stream("Write me a joke about cats", stream_mode="updates"):
    print(step)
    print("\n")

LangSmith Trace

https://smith.langchain.com/public/5e2eb979-82dd-402c-b1a0-a8cceaf2a28a/r

JavaScript

import { SystemMessage, HumanMessage } from "@langchain/core/messages";

// Schema for structured output to use as routing logic
const Route = z.object({
  step: z.enum(["poem", "story", "joke"]).describe(
    "The next step in the routing process"
  ),
});

// Augment the LLM with schema for structured output
const router = llm.withStructuredOutput(Route);

const llmCall1 = task("llm_call_1", async (input: string) => {
  // Write a story
  const result = await llm.invoke(input);
  return result.content;
});

const llmCall2 = task("llm_call_2", async (input: string) => {
  // Write a joke
  const result = await llm.invoke(input);
  return result.content;
});

const llmCall3 = task("llm_call_3", async (input: string) => {
  // Write a poem
  const result = await llm.invoke(input);
  return result.content;
});

const llmCallRouter = async (input: string) => {
  // Route the input to the appropriate node
  const decision = await router.invoke([
    new SystemMessage("Route the input to story, joke, or poem based on the user's request."),
    new HumanMessage(input),
  ]);
  return decision.step;
};

// Create workflow
const routerWorkflow = entrypoint("routerWorkflow", async (input: string) => {
  const nextStep = await llmCallRouter(input);

  let llmCall: typeof llmCall1;
  if (nextStep === "story") {
    llmCall = llmCall1;
  } else if (nextStep === "joke") {
    llmCall = llmCall2;
  } else if (nextStep === "poem") {
    llmCall = llmCall3;
  }

  return await llmCall(input);
});

// Invoke
const stream = await routerWorkflow.stream("Write me a joke about cats", { streamMode: "updates" });
for await (const step of stream) {
  console.log(step);
  console.log("\n");
}

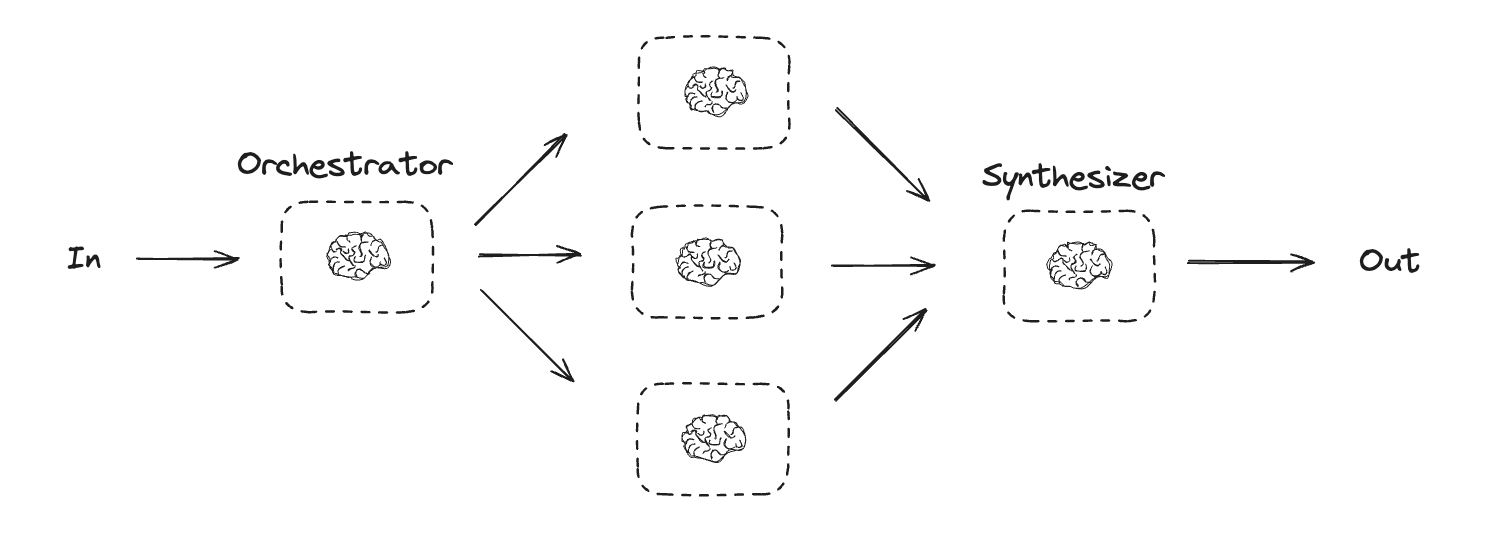

编排器-工作器

使用编排器-工作器时,编排器分解任务并将每个子任务委托给工作器。如 Anthropic 关于 Building Effective Agents 的博客中所述:

在编排器-工作器工作流中,中央 LLM 动态分解任务,将它们委托给工作器 LLM,并综合它们的结果。

何时使用此工作流:此工作流非常适合无法预测所需子任务的复杂任务(例如在编码中,需要更改的文件数量和每个文件中更改的性质可能取决于任务)。虽然在拓扑上相似,但与并行化的关键区别在于其灵活性——子任务不是预定义的,而是由编排器根据特定输入确定的。

Graph APIFunctional API

Python

from typing import Annotated, List
import operator


# Schema for structured output to use in planning
class Section(BaseModel):
    name: str = Field(
        description="Name for this section of the report.",
    )
    description: str = Field(
        description="Brief overview of the main topics and concepts to be covered in this section.",
    )


class Sections(BaseModel):
    sections: List[Section] = Field(
        description="Sections of the report.",
    )


# Augment the LLM with schema for structured output
planner = llm.with_structured_output(Sections)

在 LangGraph 中创建工作器

因为编排器-工作器工作流很常见,LangGraph 提供了 Send API 来支持此功能。它允许你动态创建工作器节点并向每个节点发送特定的输入。每个工作器都有自己的状态,所有工作器输出都写入编排器图可访问的*共享状态键*。这使编排器可以访问所有工作器输出,并允许它将它们综合成最终输出。如下所示,我们遍历节列表并将每个节 Send 到一个工作器节点。请参阅进一步的文档此处和此处。

from langgraph.types import Send


# Graph state
class State(TypedDict):
    topic: str  # Report topic
    sections: list[Section]  # List of report sections
    completed_sections: Annotated[
        list, operator.add
    ]  # All workers write to this key in parallel
    final_report: str  # Final report


# Worker state
class WorkerState(TypedDict):
    section: Section
    completed_sections: Annotated[list, operator.add]


# Nodes
def orchestrator(state: State):
    """Orchestrator that generates a plan for the report"""

    # Generate queries
    report_sections = planner.invoke(
        [
            SystemMessage(content="Generate a plan for the report."),
            HumanMessage(content=f"Here is the report topic: {state['topic']}"),
        ]
    )

    return {"sections": report_sections.sections}


def llm_call(state: WorkerState):
    """Worker writes a section of the report"""

    # Generate section
    section = llm.invoke(
        [
            SystemMessage(
                content="Write a report section following the provided name and description. Include no preamble for each section. Use markdown formatting."
            ),
            HumanMessage(
                content=f"Here is the section name: {state['section'].name} and description: {state['section'].description}"
            ),
        ]
    )

    # Write the updated section to completed sections
    return {"completed_sections": [section.content]}


def synthesizer(state: State):
    """Synthesize full report from sections"""

    # List of completed sections
    completed_sections = state["completed_sections"]

    # Format completed section to str to use as context for final sections
    completed_report_sections = "\n\n---\n\n".join(completed_sections)

    return {"final_report": completed_report_sections}


# Conditional edge function to create llm_call workers that each write a section of the report
def assign_workers(state: State):
    """Assign a worker to each section in the plan"""

    # Kick off section writing in parallel via Send() API
    return [Send("llm_call", {"section": s}) for s in state["sections"]]


# Build workflow
orchestrator_worker_builder = StateGraph(State)

# Add the nodes
orchestrator_worker_builder.add_node("orchestrator", orchestrator)
orchestrator_worker_builder.add_node("llm_call", llm_call)
orchestrator_worker_builder.add_node("synthesizer", synthesizer)

# Add edges to connect nodes
orchestrator_worker_builder.add_edge(START, "orchestrator")
orchestrator_worker_builder.add_conditional_edges(
    "orchestrator", assign_workers, ["llm_call"]
)
orchestrator_worker_builder.add_edge("llm_call", "synthesizer")
orchestrator_worker_builder.add_edge("synthesizer", END)

# Compile the workflow
orchestrator_worker = orchestrator_worker_builder.compile()

# Show the workflow
display(Image(orchestrator_worker.get_graph().draw_mermaid_png()))

# Invoke
state = orchestrator_worker.invoke({"topic": "Create a report on LLM scaling laws"})

from IPython.display import Markdown
Markdown(state["final_report"])

LangSmith Trace

https://smith.langchain.com/public/78cbcfc3-38bf-471d-b62a-b299b144237d/r

资源:

LangChain Academy

请参阅我们关于编排器-工作器的课程此处。

示例

此处是一个使用编排器-工作器进行报告规划和编写的项目。请参阅我们的视频此处。

JavaScript

import "@langchain/langgraph/zod";

// Schema for structured output to use in planning
const Section = z.object({
  name: z.string().describe("Name for this section of the report."),
  description: z.string().describe("Brief overview of the main topics and concepts to be covered in this section."),
});

const Sections = z.object({
  sections: z.array(Section).describe("Sections of the report."),
});

// Augment the LLM with schema for structured output
const planner = llm.withStructuredOutput(Sections);

在 LangGraph 中创建工作器

因为编排器-工作器工作流很常见,LangGraph 提供了 Send API 来支持此功能。它允许你动态创建工作器节点并向每个节点发送特定的输入。每个工作器都有自己的状态,所有工作器输出都写入编排器图可访问的*共享状态键*。这使编排器可以访问所有工作器输出,并允许它将它们综合成最终输出。如下所示,我们遍历节列表并将每个节 Send 到一个工作器节点。请参阅进一步的文档此处和此处。

import { withLangGraph } from "@langchain/langgraph/zod";
import { Send } from "@langchain/langgraph";

// Graph state
const State = z.object({
  topic: z.string(), // Report topic
  sections: z.array(Section).optional(), // List of report sections
  // All workers write to this key
  completed_sections: withLangGraph(z.array(z.string()), {
    reducer: {
      fn: (x, y) => x.concat(y),
    },
    default: () => [],
  }),
  final_report: z.string().optional(), // Final report
});

// Worker state
const WorkerState = z.object({
  section: Section,
  completed_sections: withLangGraph(z.array(z.string()), {
    reducer: {
      fn: (x, y) => x.concat(y),
    },
    default: () => [],
  }),
});

// Nodes
const orchestrator = async (state: z.infer<typeof State>) => {
  // Orchestrator that generates a plan for the report
  const reportSections = await planner.invoke([
    new SystemMessage("Generate a plan for the report."),
    new HumanMessage(`Here is the report topic: ${state.topic}`),
  ]);

  return { sections: reportSections.sections };
};

const llmCall = async (state: z.infer<typeof WorkerState>) => {
  // Worker writes a section of the report
  const section = await llm.invoke([
    new SystemMessage(
      "Write a report section following the provided name and description. Include no preamble for each section. Use markdown formatting."
    ),
    new HumanMessage(
      `Here is the section name: ${state.section.name} and description: ${state.section.description}`
    ),
  ]);

  // Write the updated section to completed sections
  return { completed_sections: [section.content] };
};

const synthesizer = (state: z.infer<typeof State>) => {
  // Synthesize full report from sections
  const completedSections = state.completed_sections;
  const completedReportSections = completedSections.join("\n\n---\n\n");
  return { final_report: completedReportSections };
};

// Conditional edge function to create llm_call workers
const assignWorkers = (state: z.infer<typeof State>) => {
  // Assign a worker to each section in the plan
  return state.sections!.map((s) => new Send("llm_call", { section: s }));
};

// Build workflow
const orchestratorWorkerBuilder = new StateGraph(State)
  .addNode("orchestrator", orchestrator)
  .addNode("llm_call", llmCall)
  .addNode("synthesizer", synthesizer)
  .addEdge(START, "orchestrator")
  .addConditionalEdges("orchestrator", assignWorkers, ["llm_call"])
  .addEdge("llm_call", "synthesizer")
  .addEdge("synthesizer", END);

// Compile the workflow
const orchestratorWorker = orchestratorWorkerBuilder.compile();

// Invoke
const state = await orchestratorWorker.invoke({ topic: "Create a report on LLM scaling laws" });
console.log(state.final_report);

Python

from typing import List


# Schema for structured output to use in planning
class Section(BaseModel):
    name: str = Field(
        description="Name for this section of the report.",
    )
    description: str = Field(
        description="Brief overview of the main topics and concepts to be covered in this section.",
    )


class Sections(BaseModel):
    sections: List[Section] = Field(
        description="Sections of the report.",
    )


# Augment the LLM with schema for structured output
planner = llm.with_structured_output(Sections)


@task
def orchestrator(topic: str):
    """Orchestrator that generates a plan for the report"""
    # Generate queries
    report_sections = planner.invoke(
        [
            SystemMessage(content="Generate a plan for the report."),
            HumanMessage(content=f"Here is the report topic: {topic}"),
        ]
    )

    return report_sections.sections


@task
def llm_call(section: Section):
    """Worker writes a section of the report"""

    # Generate section
    result = llm.invoke(
        [
            SystemMessage(content="Write a report section."),
            HumanMessage(
                content=f"Here is the section name: {section.name} and description: {section.description}"
            ),
        ]
    )

    # Write the updated section to completed sections
    return result.content


@task
def synthesizer(completed_sections: list[str]):
    """Synthesize full report from sections"""
    final_report = "\n\n---\n\n".join(completed_sections)
    return final_report


@entrypoint()
def orchestrator_worker(topic: str):
    sections = orchestrator(topic).result()
    section_futures = [llm_call(section) for section in sections]
    final_report = synthesizer(
        [section_fut.result() for section_fut in section_futures]
    ).result()
    return final_report

# Invoke
report = orchestrator_worker.invoke("Create a report on LLM scaling laws")
from IPython.display import Markdown
Markdown(report)

LangSmith Trace

https://smith.langchain.com/public/75a636d0-6179-4a12-9836-e0aa571e87c5/r

JavaScript

// Schema for structured output to use in planning
const Section = z.object({
  name: z.string().describe("Name for this section of the report."),
  description: z.string().describe("Brief overview of the main topics and concepts to be covered in this section."),
});

const Sections = z.object({
  sections: z.array(Section).describe("Sections of the report."),
});

// Augment the LLM with schema for structured output
const planner = llm.withStructuredOutput(Sections);

const orchestrator = task("orchestrator", async (topic: string) => {
  // Orchestrator that generates a plan for the report
  const reportSections = await planner.invoke([
    new SystemMessage("Generate a plan for the report."),
    new HumanMessage(`Here is the report topic: ${topic}`),
  ]);
  return reportSections.sections;
});

const llmCall = task("llm_call", async (section: z.infer<typeof Section>) => {
  // Worker writes a section of the report
  const result = await llm.invoke([
    new SystemMessage("Write a report section."),
    new HumanMessage(
      `Here is the section name: ${section.name} and description: ${section.description}`
    ),
  ]);
  return result.content;
});

const synthesizer = task("synthesizer", (completedSections: string[]) => {
  // Synthesize full report from sections
  const finalReport = completedSections.join("\n\n---\n\n");
  return finalReport;
});

const orchestratorWorker = entrypoint("orchestratorWorker", async (topic: string) => {
  const sections = await orchestrator(topic);
  const sectionFutures = sections.map((section) => llmCall(section));
  const finalReport = await synthesizer(
    await Promise.all(sectionFutures)
  );
  return finalReport;
});

// Invoke
const report = await orchestratorWorker.invoke("Create a report on LLM scaling laws");
console.log(report);

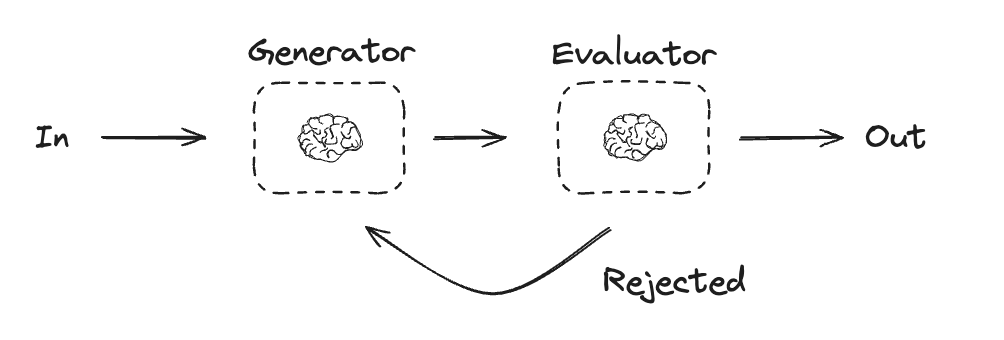

评估器-优化器

在评估器-优化器工作流中,一个 LLM 调用生成响应,而另一个在循环中提供评估和反馈:

何时使用此工作流:当我们有明确的评估标准,并且迭代优化提供可衡量的价值时,此工作流特别有效。良好拟合的两个标志是:首先,当人类阐述他们的反馈时,LLM 响应可以被明显改善;其次,LLM 可以提供这样的反馈。这类似于人类作家在制作精美文档时可能经历的迭代写作过程。

Graph APIFunctional API

Python

# Graph state
class State(TypedDict):
    joke: str
    topic: str
    feedback: str
    funny_or_not: str


# Schema for structured output to use in evaluation
class Feedback(BaseModel):
    grade: Literal["funny", "not funny"] = Field(
        description="Decide if the joke is funny or not.",
    )
    feedback: str = Field(
        description="If the joke is not funny, provide feedback on how to improve it.",
    )


# Augment the LLM with schema for structured output
evaluator = llm.with_structured_output(Feedback)


# Nodes
def llm_call_generator(state: State):
    """LLM generates a joke"""

    if state.get("feedback"):
        msg = llm.invoke(
            f"Write a joke about {state['topic']} but take into account the feedback: {state['feedback']}"
        )
    else:
        msg = llm.invoke(f"Write a joke about {state['topic']}")
    return {"joke": msg.content}


def llm_call_evaluator(state: State):
    """LLM evaluates the joke"""

    grade = evaluator.invoke(f"Grade the joke {state['joke']}")
    return {"funny_or_not": grade.grade, "feedback": grade.feedback}


# Conditional edge function to route back to joke generator or end based upon feedback from the evaluator
def route_joke(state: State):
    """Route back to joke generator or end based upon feedback from the evaluator"""

    if state["funny_or_not"] == "funny":
        return "Accepted"
    elif state["funny_or_not"] == "not funny":
        return "Rejected + Feedback"


# Build workflow
optimizer_builder = StateGraph(State)

# Add the nodes
optimizer_builder.add_node("llm_call_generator", llm_call_generator)
optimizer_builder.add_node("llm_call_evaluator", llm_call_evaluator)

# Add edges to connect nodes
optimizer_builder.add_edge(START, "llm_call_generator")
optimizer_builder.add_edge("llm_call_generator", "llm_call_evaluator")
optimizer_builder.add_conditional_edges(
    "llm_call_evaluator",
    route_joke,
    {  # Name returned by route_joke : Name of next node to visit
        "Accepted": END,
        "Rejected + Feedback": "llm_call_generator",
    },
)

# Compile the workflow
optimizer_workflow = optimizer_builder.compile()

# Show the workflow
display(Image(optimizer_workflow.get_graph().draw_mermaid_png()))

# Invoke
state = optimizer_workflow.invoke({"topic": "Cats"})
print(state["joke"])

LangSmith Trace

https://smith.langchain.com/public/86ab3e60-2000-4bff-b988-9b89a3269789/r

资源:

示例

此处是一个使用评估器-优化器来改进报告的助手。请参阅我们的视频此处。

此处是一个对答案进行幻觉或错误评分的 RAG 工作流。请参阅我们的视频此处。

JavaScript

// Graph state
const State = z.object({
  joke: z.string().optional(),
  topic: z.string(),
  feedback: z.string().optional(),
  funny_or_not: z.string().optional(),
});

// Schema for structured output to use in evaluation
const Feedback = z.object({
  grade: z.enum(["funny", "not funny"]).describe("Decide if the joke is funny or not."),
  feedback: z.string().describe("If the joke is not funny, provide feedback on how to improve it."),
});

// Augment the LLM with schema for structured output
const evaluator = llm.withStructuredOutput(Feedback);

// Nodes
const llmCallGenerator = async (state: z.infer<typeof State>) => {
  // LLM generates a joke
  let msg;
  if (state.feedback) {
    msg = await llm.invoke(
      `Write a joke about ${state.topic} but take into account the feedback: ${state.feedback}`
    );
  } else {
    msg = await llm.invoke(`Write a joke about ${state.topic}`);
  }
  return { joke: msg.content };
};

const llmCallEvaluator = async (state: z.infer<typeof State>) => {
  // LLM evaluates the joke
  const grade = await evaluator.invoke(`Grade the joke ${state.joke}`);
  return { funny_or_not: grade.grade, feedback: grade.feedback };
};

// Conditional edge function to route back to joke generator or end
const routeJoke = (state: z.infer<typeof State>) => {
  // Route back to joke generator or end based upon feedback from the evaluator
  if (state.funny_or_not === "funny") {
    return "Accepted";
  } else if (state.funny_or_not === "not funny") {
    return "Rejected + Feedback";
  }
};

// Build workflow
const optimizerBuilder = new StateGraph(State)
  .addNode("llm_call_generator", llmCallGenerator)
  .addNode("llm_call_evaluator", llmCallEvaluator)
  .addEdge(START, "llm_call_generator")
  .addEdge("llm_call_generator", "llm_call_evaluator")
  .addConditionalEdges(
    "llm_call_evaluator",
    routeJoke,
    {
      "Accepted": END,
      "Rejected + Feedback": "llm_call_generator",
    }
  );

// Compile the workflow
const optimizerWorkflow = optimizerBuilder.compile();

// Invoke
const state = await optimizerWorkflow.invoke({ topic: "Cats" });
console.log(state.joke);

Python

# Schema for structured output to use in evaluation
class Feedback(BaseModel):
    grade: Literal["funny", "not funny"] = Field(
        description="Decide if the joke is funny or not.",
    )
    feedback: str = Field(
        description="If the joke is not funny, provide feedback on how to improve it.",
    )


# Augment the LLM with schema for structured output
evaluator = llm.with_structured_output(Feedback)


# Nodes
@task
def llm_call_generator(topic: str, feedback: Feedback):
    """LLM generates a joke"""
    if feedback:
        msg = llm.invoke(
            f"Write a joke about {topic} but take into account the feedback: {feedback}"
        )
    else:
        msg = llm.invoke(f"Write a joke about {topic}")
    return msg.content


@task
def llm_call_evaluator(joke: str):
    """LLM evaluates the joke"""
    feedback = evaluator.invoke(f"Grade the joke {joke}")
    return feedback


@entrypoint()
def optimizer_workflow(topic: str):
    feedback = None
    while True:
        joke = llm_call_generator(topic, feedback).result()
        feedback = llm_call_evaluator(joke).result()
        if feedback.grade == "funny":
            break

    return joke

# Invoke
for step in optimizer_workflow.stream("Cats", stream_mode="updates"):
    print(step)
    print("\n")

LangSmith Trace

https://smith.langchain.com/public/f66830be-4339-4a6b-8a93-389ce5ae27b4/r

JavaScript

// Schema for structured output to use in evaluation
const Feedback = z.object({
  grade: z.enum(["funny", "not funny"]).describe("Decide if the joke is funny or not."),
  feedback: z.string().describe("If the joke is not funny, provide feedback on how to improve it."),
});

// Augment the LLM with schema for structured output
const evaluator = llm.withStructuredOutput(Feedback);

// Nodes
const llmCallGenerator = task("llm_call_generator", async (topic: string, feedback?: string) => {
  // LLM generates a joke
  if (feedback) {
    const msg = await llm.invoke(
      `Write a joke about ${topic} but take into account the feedback: ${feedback}`
    );
    return msg.content;
  } else {
    const msg = await llm.invoke(`Write a joke about ${topic}`);
    return msg.content;
  }
});

const llmCallEvaluator = task("llm_call_evaluator", async (joke: string) => {
  // LLM evaluates the joke
  const feedback = await evaluator.invoke(`Grade the joke ${joke}`);
  return feedback;
});

const optimizerWorkflow = entrypoint("optimizerWorkflow", async (topic: string) => {
  let feedback;
  while (true) {
    const joke = await llmCallGenerator(topic, feedback?.feedback);
    feedback = await llmCallEvaluator(joke);
    if (feedback.grade === "funny") {
      return joke;
    }
  }
});

// Invoke
const stream = await optimizerWorkflow.stream("Cats", { streamMode: "updates" });
for await (const step of stream) {
  console.log(step);
  console.log("\n");
}

智能体

智能体通常实现为基于循环中的环境反馈执行操作(通过工具调用)的 LLM。如 Anthropic 关于 Building Effective Agents 的博客中所述:

智能体可以处理复杂的任务,但它们的实现通常很简单。它们通常只是在循环中基于环境反馈使用工具的 LLM。因此,清晰周到地设计工具集及其文档至关重要。

何时使用智能体:智能体可用于难以或不可能预测所需步骤数的开放性问题,以及无法硬编码固定路径的情况。LLM 可能会运行许多轮,并且你必须对其决策有一定程度的信任。智能体的自主性使它们非常适合在受信任的环境中扩展任务。

Python

from langchain_core.tools import tool


# Define tools
@tool
def multiply(a: int, b: int) -> int:
    """Multiply a and b.

    Args:
        a: first int
        b: second int
    """
    return a * b


@tool
def add(a: int, b: int) -> int:
    """Adds a and b.

    Args:
        a: first int
        b: second int
    """
    return a + b


@tool
def divide(a: int, b: int) -> float:
    """Divide a and b.

    Args:
        a: first int
        b: second int
    """
    return a / b


# Augment the LLM with tools
tools = [add, multiply, divide]
tools_by_name = {tool.name: tool for tool in tools}
llm_with_tools = llm.bind_tools(tools)

JavaScript

import { tool } from "@langchain/core/tools";

// Define tools
const multiply = tool(
  async ({ a, b }: { a: number; b: number }) => {
    return a * b;
  },
  {
    name: "multiply",
    description: "Multiply a and b.",
    schema: z.object({
      a: z.number().describe("first int"),
      b: z.number().describe("second int"),
    }),
  }
);

const add = tool(
  async ({ a, b }: { a: number; b: number }) => {
    return a + b;
  },
  {
    name: "add",
    description: "Adds a and b.",
    schema: z.object({
      a: z.number().describe("first int"),
      b: z.number().describe("second int"),
    }),
  }
);

const divide = tool(
  async ({ a, b }: { a: number; b: number }) => {
    return a / b;
  },
  {
    name: "divide",
    description: "Divide a and b.",
    schema: z.object({
      a: z.number().describe("first int"),
      b: z.number().describe("second int"),
    }),
  }
);

// Augment the LLM with tools
const tools = [add, multiply, divide];
const toolsByName = Object.fromEntries(tools.map((tool) => [tool.name, tool]));
const llmWithTools = llm.bindTools(tools);

Graph APIFunctional API

Python

from langgraph.graph import MessagesState
from langchain_core.messages import SystemMessage, HumanMessage, ToolMessage


# Nodes
def llm_call(state: MessagesState):
    """LLM decides whether to call a tool or not"""

    return {
        "messages": [
            llm_with_tools.invoke(
                [
                    SystemMessage(
                        content="You are a helpful assistant tasked with performing arithmetic on a set of inputs."
                    )
                ]
                + state["messages"]
            )
        ]
    }


def tool_node(state: dict):
    """Performs the tool call"""

    result = []
    for tool_call in state["messages"][-1].tool_calls:
        tool = tools_by_name[tool_call["name"]]
        observation = tool.invoke(tool_call["args"])
        result.append(ToolMessage(content=observation, tool_call_id=tool_call["id"]))
    return {"messages": result}


# Conditional edge function to route to the tool node or end based upon whether the LLM made a tool call
def should_continue(state: MessagesState) -> Literal["Action", END]:
    """Decide if we should continue the loop or stop based upon whether the LLM made a tool call"""

    messages = state["messages"]
    last_message = messages[-1]
    # If the LLM makes a tool call, then perform an action
    if last_message.tool_calls:
        return "Action"
    # Otherwise, we stop (reply to the user)
    return END


# Build workflow
agent_builder = StateGraph(MessagesState)

# Add nodes
agent_builder.add_node("llm_call", llm_call)
agent_builder.add_node("environment", tool_node)

# Add edges to connect nodes
agent_builder.add_edge(START, "llm_call")
agent_builder.add_conditional_edges(
    "llm_call",
    should_continue,
    {
        # Name returned by should_continue : Name of next node to visit
        "Action": "environment",
        END: END,
    },
)
agent_builder.add_edge("environment", "llm_call")

# Compile the agent
agent = agent_builder.compile()

# Show the agent
display(Image(agent.get_graph(xray=True).draw_mermaid_png()))

# Invoke
messages = [HumanMessage(content="Add 3 and 4.")]
messages = agent.invoke({"messages": messages})
for m in messages["messages"]:
    m.pretty_print()

LangSmith Trace

https://smith.langchain.com/public/051f0391-6761-4f8c-a53b-22231b016690/r

资源:

LangChain Academy

请参阅我们关于智能体的课程此处。

示例

此处是一个使用工具调用智能体创建/存储长期记忆的项目。

JavaScript

import { MessagesZodState, ToolNode } from "@langchain/langgraph/prebuilt";
import { SystemMessage, HumanMessage, ToolMessage, isAIMessage } from "@langchain/core/messages";

// Nodes
const llmCall = async (state: z.infer<typeof MessagesZodState>) => {
  // LLM decides whether to call a tool or not
  const response = await llmWithTools.invoke([
    new SystemMessage(
      "You are a helpful assistant tasked with performing arithmetic on a set of inputs."
    ),
    ...state.messages,
  ]);
  return { messages: [response] };
};

const toolNode = new ToolNode(tools);

// Conditional edge function to route to the tool node or end
const shouldContinue = (state: z.infer<typeof MessagesZodState>) => {
  // Decide if we should continue the loop or stop
  const messages = state.messages;
  const lastMessage = messages[messages.length - 1];
  // If the LLM makes a tool call, then perform an action
  if (isAIMessage(lastMessage) && lastMessage.tool_calls?.length) {
    return "Action";
  }
  // Otherwise, we stop (reply to the user)
  return END;
};

// Build workflow
const agentBuilder = new StateGraph(MessagesZodState)
  .addNode("llm_call", llmCall)
  .addNode("environment", toolNode)
  .addEdge(START, "llm_call")
  .addConditionalEdges(
    "llm_call",
    shouldContinue,
    {
      "Action": "environment",
      [END]: END,
    }
  )
  .addEdge("environment", "llm_call");

// Compile the agent
const agent = agentBuilder.compile();

// Invoke
const messages = [new HumanMessage("Add 3 and 4.")];
const result = await agent.invoke({ messages });
for (const m of result.messages) {
  console.log(`${m.getType()}: ${m.content}`);
}

Python

from langgraph.graph import add_messages
from langchain_core.messages import (
    SystemMessage,
    HumanMessage,
    BaseMessage,
    ToolCall,
)


@task
def call_llm(messages: list[BaseMessage]):
    """LLM decides whether to call a tool or not"""
    return llm_with_tools.invoke(
        [
            SystemMessage(
                content="You are a helpful assistant tasked with performing arithmetic on a set of inputs."
            )
        ]
        + messages
    )


@task
def call_tool(tool_call: ToolCall):
    """Performs the tool call"""
    tool = tools_by_name[tool_call["name"]]
    return tool.invoke(tool_call)


@entrypoint()
def agent(messages: list[BaseMessage]):
    llm_response = call_llm(messages).result()

    while True:
        if not llm_response.tool_calls:
            break

        # Execute tools
        tool_result_futures = [
            call_tool(tool_call) for tool_call in llm_response.tool_calls
        ]
        tool_results = [fut.result() for fut in tool_result_futures]
        messages = add_messages(messages, [llm_response, *tool_results])
        llm_response = call_llm(messages).result()

    messages = add_messages(messages, llm_response)
    return messages

# Invoke
messages = [HumanMessage(content="Add 3 and 4.")]
for chunk in agent.stream(messages, stream_mode="updates"):
    print(chunk)
    print("\n")

LangSmith Trace

https://smith.langchain.com/public/42ae8bf9-3935-4504-a081-8ddbcbfc8b2e/r

JavaScript

import { addMessages } from "@langchain/langgraph";
import {
  SystemMessage,
  HumanMessage,
  BaseMessage,
  ToolCall,
} from "@langchain/core/messages";

const callLlm = task("call_llm", async (messages: BaseMessage[]) => {
  // LLM decides whether to call a tool or not
  return await llmWithTools.invoke([
    new SystemMessage(
      "You are a helpful assistant tasked with performing arithmetic on a set of inputs."
    ),
    ...messages,
  ]);
});

const callTool = task("call_tool", async (toolCall: ToolCall) => {
  // Performs the tool call
  const tool = toolsByName[toolCall.name];
  return await tool.invoke(toolCall);
});

const agent = entrypoint("agent", async (messages: BaseMessage[]) => {
  let currentMessages = messages;
  let llmResponse = await callLlm(currentMessages);

  while (true) {
    if (!llmResponse.tool_calls?.length) {
      break;
    }

    // Execute tools
    const toolResults = await Promise.all(
      llmResponse.tool_calls.map((toolCall) => callTool(toolCall))
    );

    // Append to message list
    currentMessages = addMessages(currentMessages, [
      llmResponse,
      ...toolResults,
    ]);

    // Call model again
    llmResponse = await callLlm(currentMessages);
  }

  return llmResponse;
});

// Invoke
const messages = [new HumanMessage("Add 3 and 4.")];
const stream = await agent.stream(messages, { streamMode: "updates" });
for await (const chunk of stream) {
  console.log(chunk);
  console.log("\n");
}

预构建

Python

LangGraph 还提供了一种**预构建方法**来创建如上所定义的智能体(使用 @[create_react_agent][] 函数):

https://langchain-ai.github.io/langgraph/how-tos/create-react-agent/

from langgraph.prebuilt import create_react_agent

# 传入:
# (1) 带有工具的增强 LLM
# (2) 工具列表(用于创建工具节点)
pre_built_agent = create_react_agent(llm, tools=tools)

# 显示智能体
display(Image(pre_built_agent.get_graph().draw_mermaid_png()))

# 调用
messages = [HumanMessage(content="Add 3 and 4.")]
messages = pre_built_agent.invoke({"messages": messages})
for m in messages["messages"]:
    m.pretty_print()

LangSmith Trace

https://smith.langchain.com/public/abab6a44-29f6-4b97-8164-af77413e494d/r

JavaScript

LangGraph 还提供了一种**预构建方法**来创建如上所定义的智能体(使用 @[createReactAgent][create_react_agent] 函数):

import { createReactAgent } from "@langchain/langgraph/prebuilt";

// 传入:
// (1) 带有工具的增强 LLM
// (2) 工具列表(用于创建工具节点)
const preBuiltAgent = createReactAgent({ llm, tools });

// 调用
const messages = [new HumanMessage("Add 3 and 4.")];
const result = await preBuiltAgent.invoke({ messages });
for (const m of result.messages) {
  console.log(`${m.getType()}: ${m.content}`);
}

LangGraph 提供的功能

通过在 LangGraph 中构建上述每一个,我们可以获得一些东西:

持久化:人机协同

LangGraph 持久化层支持中断和操作批准(例如,人机协同)。请参阅 LangChain Academy 的模块 3。

持久化:记忆

LangGraph 持久化层支持对话(短期)记忆和长期记忆。请参阅 LangChain Academy 的模块 2和模块 5:

流式处理

LangGraph 提供了几种流式处理工作流/智能体输出或中间状态的方法。请参阅 LangChain Academy 的模块 3。

部署

LangGraph 为部署、可观测性和评估提供了简单的入口。请参阅 LangChain Academy 的模块 6。
